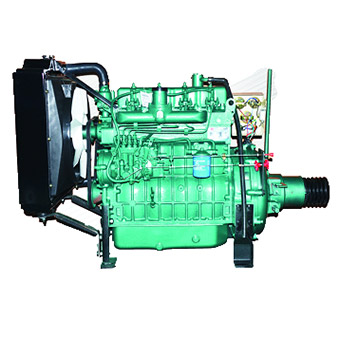

Fixed power series diesel engine
2016/10/24
Product display
Technical parameter
|
Model |
2105P |
2110P |
2105PD |
2110PD |
|
Type |
Water cooled, four stroke, direct injection, naturally aspirated type |
|||
|
Bore * stroke（mm） |
105*117 |
110*117 |
105*117 |
110*117 |
|
Displacement （L） |
2.026 |
2.224 |
2.026 |
2.224 |
|
Rated power / speed（kW/rmp） |
26/2200 |
28/2200 |
26/2200 |
28/2200 |
|
The fuel consumption rate（g/kWh） |
≤246 |
|||
|
Dimensions (length * width * height) |
880*650*800 |
1060*650*800
|
||
|
Model |
485P |
490P |
485PD |
490PD |
|
Type |
Water cooled, four stroke, direct injection, naturally aspirated type |
|||
|
Bore * stroke（mm） |
85*100 |
90*100 |
85*100 |
90*100 |
|
Displacement（L） |
2.27 |
2.545 |
2.27 |
2.545 |
|
Rated power / speed（kW/rmp） |
34/2400 |
38/2400 |
34/2400 |
38/2400 |
|
The fuel consumption rate（g/kWh） |
≤257 |
|||
|
Dimensions (length * width * height) |
1050*550*760 |
1270*550*760 |
||
|
Model |
R4100P |
R4102P |
R4100PD |
R4102PD |
|
Type |
Water cooled, four stroke, direct injection, naturally aspirated type |
|||
|
Bore * stroke（mm） |
100*115 |
102*115 |
100*115 |
102*115 |
|
Displacement（L） |
3.613 |
3.759 |
3.613 |
3.759 |
|
Rated power / speed（kW/rmp） |
40/2000（44/2200） |
43/2000（47/2200） |
40/2000（44/2200） |
43/2000（47/2200） |
|
The fuel consumption rate（g/kWh） |
≤251.6 |
|||
|
Dimensions (length * width * height) |
1200*530*940 |
390*570*950 |
||
|
Model |
R4105P |
R4108P |
R4105ZP |
R4108ZP |
|
Type |
Water cooled, four stroke, direct injection, naturally aspirated type |
Water cooled, four stroke, direct injection, turbocharged |
||
|
Bore * stroke（mm） |
105*125 |
108*125 |
105*125 |
108*125 |
|
Displacement（L） |
4.33 |
4.58 |
4.33 |
4.58 |
|
Rated power / speed（kW/rmp） |
51/2000（53/2200） |
54/2000（53/2200） |
62/2000（66/2200） |
66/2000（70/2200） |
|
The fuel consumption rate （g/kWh） |
≤242 |
≤239 |
||
|
Dimensions (length * width * height)（mm） |
1280*630*960 |
1280*630*1090 |
||
|
Model |
4102P |
4105P |
4108P |
|
Type |
Water cooled, four stroke, direct injection, naturally aspirated type |
||
|
Bore * stroke（mm） |
102*118 |
105*118 |
108*118 |
|
Displacement（L） |
3.857 |
4.087 |
4.324 |
|
Rated power / speed（kW/rmp） |
52/2400 |
56/2400 |
60/2400 |
|
The fuel consumption rate（g/kWh） |
≤246 |
||
|
Dimensions (length * width * height) （mm） |
|
||
