Engineering machinery series diesel engine
2016/10/24

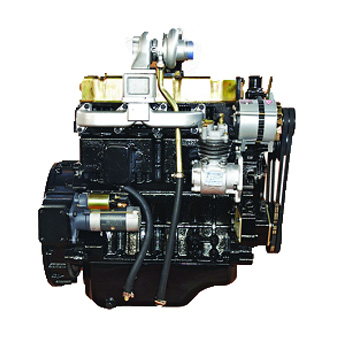

Product display
Technical parameter
|
Model |
2105G |
2110G |
485G |
490G |
490K |
|
Type |
水冷、四冲程、直喷式、自然吸气型 |
||||
|
Bore * stroke（mm） |
105*117 |
110*117 |
85*100 |
90*110 |
90*110 |
|
Displacement（L） |
2.026 |
2.224 |
2.27 |
2.545 |
2.545 |
|
Rated power / speed（kW/rmp） |
26/2200 |
28/2200 |
34/2400 |
38/2400 |
38/2400 |
|
The fuel consumption rate（g/kWh） |
≤246 |
≤257 |
|||
|
Dimensions (length * width * height)（mm） |
655*568*720 |
862*500*662 |
727*500*662 |
||
|
Model |
R4100Q |
R4102Q |
R4100K |
R4102K |
|
Type |
Water cooled, four stroke, direct injection, naturally aspirated type |
|||
|
Bore * stroke（mm） |
100*115 |
102*115 |
100*115 |
102*115 |
|
Displacement（L） |
3.613 |
3.759 |
3.613 |
3.759 |
|
Rated power / speed （kW/rmp） |
44/2200 |
47/2200 |
44/2200 |
47/2200 |
|
The fuel consumption rate （g/kWh） |
≤251.6 |
|||
|
Dimensions (length * width * height) （mm） |
1004*508*851 |
825*508*851 |
||
|
Model |
R4100ZQ |
R4102ZQ |
R4100ZK |
R4102ZK |
|
Type |
Water cooled, four stroke, direct injection, turbocharged |
|||
|
Bore * stroke（mm） |
100*115 |
102*115 |
100*115 |
102*115 |
|
Displacement（L） |
3.613 |
3.759 |
3.613 |
3.759 |
|
Rated power / speed（kW/rmp） |
52/2200 |
56/2200（60/2400） |
52/2200 |
56/2200（60/2400） |
|
The fuel consumption rate（g/kWh） |
≤242 |
|||
|
Dimensions (length * width * height) （mm） |
1004*508*851 |
825*508*851 |
||
|
Model |
R4105G |
R4108G |
R4105ZG |
R4108ZG |
|
Type |
Water cooled, four stroke, direct injection, naturally aspirated type |
Water cooled, four stroke, direct injection, turbocharged |
||
|
Bore * Travel（mm） |
105*125 |
108*125 |
105*125 |
108*125 |
|
Displacement（L） |
4.33 |
4.58 |
4.33 |
4.58 |
|
Rated power / speed（kW/rmp） |
53/2200 |
56/2200 |
66/2200（72/2400） |
70/2000（76/2400） |
|
The fuel consumption rate （g/kWh） |
≤242 |
≤239 |
||
|
Dimensions (length * width * height) （mm） |
898*612*834 |
898*612*968 | ||
